Plate Die Series

Short Description:

product description our certificates FAQ request a quote Menu product description our certificates FAQ request a quote JW-B-A1 With a special coat-hanger channel design, the die minimizes the ablation of heat-sensitive material. With the adjustable upper die lip, changeable lower die lip, and perpendicular blocking bar, the die meets the thickness requirements of various products. The plate die is fit for PVC foaming board with a thickness between 2-20mm. JW-B-A1 JW-B-CF D...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Menu

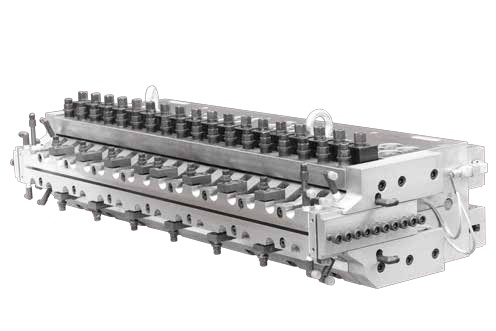

    JW-B-A1

    With a special coat-hanger channel design, the die minimizes the ablation of heat-sensitive material.

    With the adjustable upper die lip, changeable lower die lip, and perpendicular blocking bar, the die meets the thickness requirements of various products.

    The plate die is fit for PVC foaming board with a thickness between 2-20mm.

    JW-B-A1

    JW-B-A1

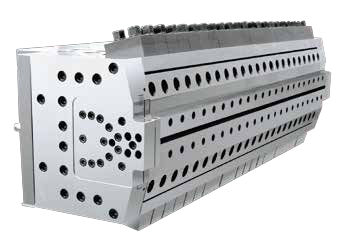

    JW-B-CF

    Double flow channels design, the upper and lower die lips are adjustable with the oil temp control, the skinning affection of the surface of the product is better and have less inner stress, truly realizing surface skinning and foaming.

    The thickness of products:5-30mm.

    JW-B-CF

    JW-B-CF

    JW-B-B1

    The die adopts a typical coat-hanger channel, an adjustable upper die lip, a changeable lower lip, and a perpendicular blocking bar. With ST-model width-control system, the width of products can be changed without interrupting.

    The plate die is designed for ABS, PS, PP single-layer, or multi-layer plates with a thickness between 0.8-8mm.

    JW-B-B1

    JW-B-B1

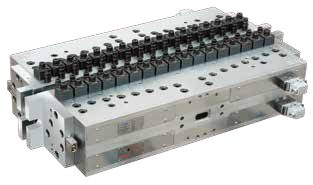

    PVC Coating Die Series

    PVC coating die adopts special channel of coat-hanger structure, adjustable upper die lip, perpendicular blocking bar, the thickness of production can be adjusted.

    In pairs,special-purpose conveyor belts with different thicknesses and sizes can be produced. These kinds of products are widely used in mining, storage, transportation, and so on.

    Specification(mm):650, 800, 1000, 1200, 1400, 1600, 1800, 2000.

    JW-F-A1

    JW-F-A1

    FAQ

    • International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW
    • Terms of Payment: LC, T/T
    • Average Lead Time: Peak season lead time: 3-6 months, Off season lead time: 1-3 months
    • Number of Foreign Trading Staff:>50 People

    Yes, We own 5 manufacturing bases and sales center in Shanghai , Suzhou ,Changzhou, Zhou Shan, Dongguan China.
    Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo.After more than 40 years development,
    JWELL is one of the biggest extrusion machine supplier in China with 300design&test engineer, 3000 employees.
    Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.

    Our machines taking the European standards and follow the Germany type of business, we cooperation with
    International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously
    imports over 1000 international first-class high precision processing equipment such as multistage machining centers, CNC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification,
    IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the
    machine performances before each delivery. Jwell service engineers will always be here for anything you needed.

    Usually it takes about 1 – 4 months depends on different machinery upon receipt of order advance payment.

    Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and
    Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.

    One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical
    innovation or improvements for your future purchasing plan.

    We produce more than 2000 advanced extrusion lines every year world wide.

    We can send the small spare parts by air express for urgent matter. And the complete production line by sea
    to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest
    port is China Shanghai, Ningbo port, which is convenient for maritime transportation..

    Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing
    engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing,
    operation and maintenance service for a life time.
