PP Honeycomb Board Extrusion Line

Short Description:

product description our certificates FAQ request a quote Menu product description our certificates FAQ request a quote PP honeycomb board extrusion line through extrusion method made three layers sandwich board of one-time forming, two sides are thin surface, the middle is honeycomb structure; According to honeycomb structure can divide into a single layer, double layer board. PP honeycomb board also can one-time forming, coat fabric at two sides, leather, with lightweight a...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Menu

    PP honeycomb board extrusion line through extrusion method made three layers sandwich board of one-time forming, two sides are thin surface, the middle is honeycomb structure; According to honeycomb structure can divide into a single layer, double layer board.

    PP honeycomb board also can one-time forming, coat fabric at two sides, leather, with lightweight and high strength, non-toxic, environment, shake absorption and cold-resistant, soundproof& heat preservation, moisture proof& heat insulation etc. advantage.

    PP honeycomb panel is light weight, high strength, water resistance, moisture resistance, heat preservation, sound insulation, corrosion resistance, non-toxic and harmless, antibacterial and mildew resistance. It also has the characteristics of energy absorption, thermoplastic re-deformation, shock absorption and shock absorption, so it is widely used Used in locomotives, ships (especially yachts, speedboats), yacht docks, pontoons, vans, chemical storage tanks, construction, glass fiber reinforced plastic, high-end house decoration, high-end mobile homes, sports protection products, body protection products, etc. Field.



    Advantages of PP Honeycomb Panel



    • Lightweight: PP (polypropylene) plastic honeycomb is about 1/12 of the same volume of water and 1/32 of aluminum, which can greatly reduce the weight of buildings, cars, ships, and light rail vehicles.
    • Sound insulation and heat insulation: Because the air layer between the two panels is divided into many closed gaps by the honeycomb, and the PP (polypropylene) plastic, the transmission of sound and heat is greatly restricted, the plastic honeycomb panel has good sound insulation and heat insulation performance.
    • Convenience: It is easy to use and install, and it can be cut arbitrarily with a general utility knife to make all kinds of special-shaped plates.
    • Water and moisture resistance: Even in the water, the PP honeycomb panel will not be deformed.
    • Environmental protection, non-toxic and harmless: It is processed from PP that can be used to produce or package food products, so it is non-toxic and harmless, does not emit any harmful gas, and can be recycled and reused.
    • Corrosion resistance: Good chemical stability is one of the advantages of PP.
    • Insulation: It has good electrical insulation and a small dielectric rate.
    • Fire protection: Combine with appropriate panels (such as fire protection panels).



    Suzhou Jwell upgraded the production line with the old structure and launched a new generation of PP Honeycomb Board Extrusion Line, which has stable and reliable performance, high integration of the whole line, and scientific design.

    • PP Honeycomb Board Extrusion Line has a convenient movable platform, which is convenient for starting and stopping the operation of side feeding;
    • U-shaped motor arrangement saves workshop space;
    • Special forming roller, double compound design to ensure adhesion;
    • An efficient cooling system ensures rapid prototyping.

    PP Honeycomb Board Extrusion Line

    PP Honeycomb Board Extrusion Line Main technical parameter



    Model Suitable material Products width(mm) Products thickness(mm) Capacity(kg/h)
    JWS75/75/75 PP 1200-1600 2-12 350-450
    JWS100/100/100 PP 1200-2000 2-20 600-700

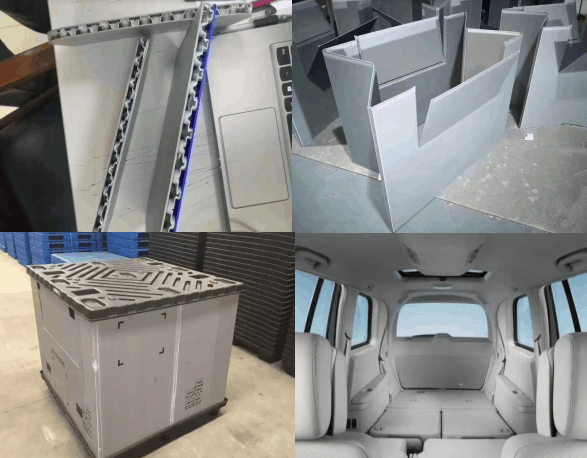

    PP Honeycomb Board Extrusion Line Main Application​

    1. Used for car trunk cover board, trunk clapboard, trunk carpet substrate, sidewall decoration board, ceiling, etc. interior place.
    2. Used for manufacturing different kinds of a high-strength packing boxes.

    PP Honeycomb Board Extrusion Line

    PP Honeycomb Board Extrusion Line

    PP Honeycomb Board Extrusion Line

    PP Honeycomb Board Extrusion Line

    FAQ

    • International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW
    • Terms of Payment: LC, T/T
    • Average Lead Time: Peak season lead time: 3-6 months, Off season lead time: 1-3 months
    • Number of Foreign Trading Staff:>50 People

    Yes, We own 5 manufacturing bases and sales center in Shanghai , Suzhou ,Changzhou, Zhou Shan, Dongguan China.
    Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo.After more than 40 years development,
    JWELL is one of the biggest extrusion machine supplier in China with 300design&test engineer, 3000 employees.
    Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.

    Our machines taking the European standards and follow the Germany type of business, we cooperation with
    International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously
    imports over 1000 international first-class high precision processing equipment such as multistage machining centers, CNC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification,
    IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the
    machine performances before each delivery. Jwell service engineers will always be here for anything you needed.

    Usually it takes about 1 – 4 months depends on different machinery upon receipt of order advance payment.

    Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and
    Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.

    One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical
    innovation or improvements for your future purchasing plan.

    We produce more than 2000 advanced extrusion lines every year world wide.

    We can send the small spare parts by air express for urgent matter. And the complete production line by sea
    to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest
    port is China Shanghai, Ningbo port, which is convenient for maritime transportation..

    Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing
    engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing,
    operation and maintenance service for a life time.
