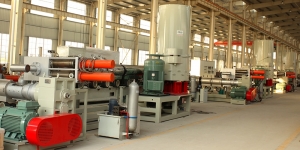

Single screw pelletizing machine

Short Description:

product description our certificates FAQ request a quote Menu product description our certificates FAQ request a quote This pelletizing machine has special screw design and different configuration, it is suitable for the recycling of PP, PE, PS, ABS,PC, etc. The gearbox is high torque designed which attains the functions of low noise and stable operation. The surface of the screw and barrel have been special treated so that the screw and barrel are wearable, and ...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Menu

    This pelletizing machine has special screw design and different configuration, it is suitable for the recycling of PP, PE, PS, ABS,PC, etc. The gearbox is high torque designed which attains the functions of low noise and stable operation. The surface of the screw and barrel have been special treated so that the screw and barrel are wearable, and they have very high mixing efficiency and the production capacity is high.The extruder has the vacuum vented design which can exhaust the vapor or gas during the production, so that the output are more stable and the pellets are more uniform.

    Single screw pelletizing Machine Main Technical Parameter

    Model
    Screw dia.(mm)
    L/D
    Screw speed(rpm)
    Power of main motor(kw)
    Output(kg/h)
    JWL45
    45
    25-35
    20-100
    11-15
    30-50
    JWL65
    65
    25-35
    20-100
    30-37
    60-120
    JWL90
    90
    25-35
    20-90
    45-55
    180-200
    JWL120
    120
    25-35
    20-75
    75-110
    250-350
    JWL150
    150
    25-35
    20-75
    110-160
    350-500
    JWL160
    160
    25-35
    20-70
    132-185
    400-550
    JWL180
    180
    25-35
    20-70
    200-250
    600-800
    JWL200
    200
    25-35
    20-60
    250-315
    800-1100

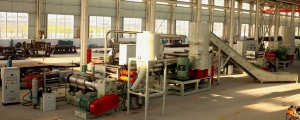

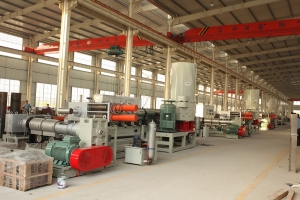

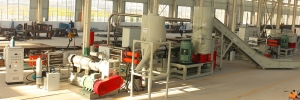

    JWL65 water ring single screw pelletizing line

    Equipment operating conditions:
    Power conditions:AC380V±10% 50Hz 3P+E
    Cooling Water: ≤22℃ 0.3~0.4Mpa
    Material: Suitable for granulation of dry and clean PE recycled materials
    Capacity: 60-80Kg/h
    Equipment List:
    1. DYSL102 Screw feeder, 1set
    2. JWL65/34 Extruder, 1set
    3.JHW100A Hydraulic Screen Exchanger, 1set
    4. Die head, 1set
    5. Water ring cutter, 1set
    6.De-watering device, 1set
    7. ZS-300 Vibrating screen, 1set
    8.DYSLD133 Air Transport Storing Unit, 1set
    9. Electric Control System, 1set
    Technical Parameters:
    1. DYSL102 Screw Feeder
    Drive Motor:1.1kw
    Control model: time relay
    screw materials:stainless

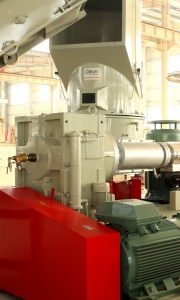

    2. JWL65/34 venting single screw extruder
    Screw material of 38CrMoAlA,with quenching nitride treatment, hardness more than HV900,integral barrel design ,and vacuum venting system,L/D ration is 34:1
    Ceramic heating rings with cover,all 7zones,total heating power of 21.5Kw, air cooling on barrel,cooling power of 0.18*7=1.26Kw
    High quality of domestic gear box, with super torque, low noise, stable processing. And oil outer recycling cooling system for the gear box
    AC motor ,power of 37Kw,motor connected with belt, with ABB inverter.
    Output capacity of 60~80Kg/h,good plasticizing, stable processing, makes sure the material will be distributed uniformly into mold
    The extruder temperature control adopts popular parameter, and mainly adopts SIEMENS or CHIT. The current, the voltage and pressure can be displayed and controlled easily

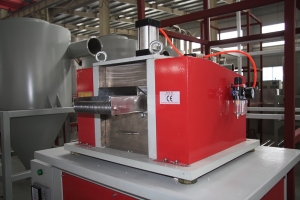

    3. JHW100A Hydraulic Screen Exchanger
    Drive Motor:1.5kw
    Pressure range:0~15Mpa
    Mesh Board dia.: φ100mm
    Exchanger heated by electric, and the heating voltage is 220V
    Exchanger board material adopts high quality alloy.
    Exchanging methods: hydraulic exchanging
    Hydraulic station
    exchanger material: 38CrMoAlA, tempering, nitriding, chromeplate and polishing
    Heating control zone: 3 zone
    heating power:4kw

    4. DYMJ300 Die head
    The body is made of high quality alloy, reasonable structure and high quality.

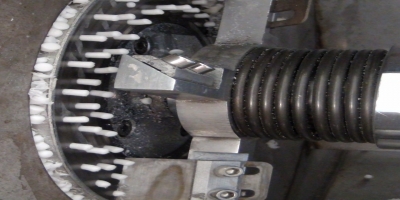

    5. DYSQ300 Water ring system
    Cutting power: 1.5kw
    Material: Aluminum cast material
    Blade quantity: 3 pieces

    6. DYTS300 De-watering device
    Material: The material contact place is made of stainless steel.
    De-watering power: 4kw
    Circulating pump: 2.2KW

    7. ZS300 Vibration
    double layer screen mouth, three outlet
    material: stainless steel
    0.22kw*2 / Motor power: 0.22kw*2

    8. DYSLD133 Air transport storing unit
    3KW / Feeding air blow power: 3KW
    Feeding pipe silo volume: 0.75 m3
    Material: Stainless steel

    9. Electric Control System
    3 phase 380V , A.C. 50HZ
    Temperature is controlled by popular meter
    Electric part mainly adopts SIEMENS or CHIT
    Extruder speed regulation controlled by ABB
    feed inverter is from ABB brand
    Thermocouple adopts compensation lead avoid the loss of signal during transportation.

    Special Tools:
    Screw dismount tool: 1set
    Spare part:
    Single screw heater: 2 pcs
    V belt: 1 sets
    Exchanger heater: 1 set
    Seal copper ring: 1 set for each
    Cooling fan: 1 pcs
    Temperature control meter: 2 pcs
    Thermocouple: 5 pcs
    Contactor: 2 pcs
    Relay: 5 pcs

    View details of other models of the pelletizing machine

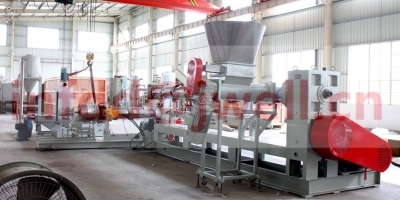

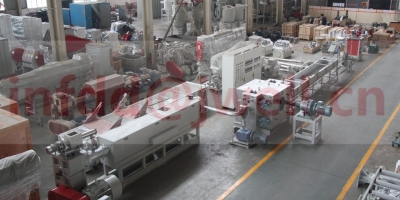

    Single screw extruder pelletizing line Application

    Single screw extruder pelletizing line Video

    PP film recycle pelletizing machine

    film aggregate pelletizing line

    PE film recycle pelletizing machine

    How to properly operate the pelletizing machine

    pelletizing machine is a necessary equipment for many waste plastic enterprises.

    Proper operation and use of the pelletizing machine can not only improve production efficiency, but also extend equipment life, reduce production costs, and improve product competitiveness.Therefore, we must properly operate, reasonably apply and properly maintain the pelletizing machine to ensure the normal operation of the pelletizing machine.



    pelletizing machine operation

    The operation of the pelletizing machine includes a series of links including the device installation, adjustment, commissioning, operation, maintenance and repair.

    When using the pelletizing machine, special attention should be paid to its characteristics, and the operating points of the pelletizing machine should be well grasped.

    Although the operating points of various pelletizing machines are different, they also have similarities.

    1. Preparation before starting pelletizing machine

    If the recycled material is used as the raw material for extrusion molding, the raw material should meet the required drying requirements, if necessary, further drying is required, and the recycled material is sieved to remove agglomerates and mechanical impurities.



    Before operating the pelletizing machine, you need to check whether the water, electricity and gas systems in the equipment are normal to ensure that the water and gas channels are smooth and leak-free.Check whether the electrical system is normal, check whether the heating system, temperature control, and various instruments work reliably;Test run the auxiliary machine at low speed and observe whether the equipment works normally;Start the setting table vacuum pump and observe whether the work is normal;Lubricate the smooth parts of various equipment. Remove the fault if found.



    According to the product variety and size, choose the specifications of the machine head and install them; clean the perforated plate and the various parts of the machine head, and replace the filter screen.

    2. Start up pelletizing machine

    Pelletizing machine can be started after constant temperature,Tighten the bolts of the machine head and the pelletizer flange again before turning on the machine to eliminate the difference in thermal expansion between the bolt and the machine head. The order of tightening the machine head bolts is diagonally tightening with even force.When tightening the flange nut of the machine head, it is required to be uniformly tight all around, otherwise the material will run away.



    When operating the pelletizing machine, first press the “ready to start” button, then press the “start” button, and then slowly turn the screw speed adjustment knob to start the screw speed slowly.Then gradually speed up, while adding a small amount of raw materials.When adding raw materials, pay close attention to the indication of the host ammeter and various indication meters.Screw torque must not exceed the red mark.When the pelletizing machine is in operation, no one should stand directly in front of the die before the plastic profile is extruded to prevent injury accidents due to broken bolts or wet raw materials.



    After the plastic is extruded from the die, according to the indication value of the control instrument and the requirements for the extruded product, adjust each part accordingly to make the entire extrusion operation reach a normal state, and add more raw materials as needed.



    According to the condition of the extruded material, judge the plasticization degree of the material. If the plasticization is not good, the screw speed, barrel and head temperature can be adjusted appropriately until the requirements are reached.



    Should regularly check whether the various process parameters are normal according to the process requirements, and fill in the process record sheet. Check the quality of the product according to the quality inspection specifications, and take corrective measures when problems are found.

    3. Work after turning off the pelletizing machine

    pelletizing machine operation stops feeding and squeezes out the plastic in the pelletizing machine. Turn off the barrel and head power and stop heating.



    Turn off the power of the pelletizing machine and auxiliary machine to stop the screw and auxiliary machine.



    If the machine head needs to be removed, cleaning work is required.Clean the perforated plate and the various parts of the machine head. When cleaning, prevent the internal surface of the machine head from being damaged.The remaining material in the machine head should be cleaned with copper sheets, and then the plastic adhered to the machine head is polished with sandpaper, polished, and coated with engine oil or silicone oil to prevent rust.



    Cleaning of screw and barrel.Restart the main machine and add shutdown material (or broken material) to clean the screw and barrel. At this time, the screw is selected at a low speed to reduce wear.After the stopped material is crushed into a powder and completely extruded, the remaining pellets and powder can be blown out repeatedly from the feeding port and the exhaust port by compressed air. After there is no residual material in the barrel, reduce the screw speed to zero, stop the pelletizer, and turn off the main power and cold water valves.



    Matters needing attention in pelletizing machine operation

    The correct operation of plastic machinery can be used to extend its life. However, the use of plastic machinery does not get enough attention in our daily life, and it will also cause some unnecessary problems. So we must pay attention when using plastic machinery. What about those problems?

    1. Pay attention to fire safety. The fire extinguisher should be placed near the equipment using thermal oil.
    2. When a malfunction or abnormal situation occurs, the relevant personnel must be reported and handled by professional maintenance personnel. If any abnormal phenomenon affecting safety occurs, immediately press the emergency stop switch.
    3. Do not use low-quality return materials with metal impurities or sand. Metal objects that may fall may not be placed near the feed port to prevent aggravating the wear of the screw and barrel, or causing jams and damage.
    4. Plastic machinery operation should use hydraulic oil with cleanliness, viscosity and other indicators that meet the requirements, and provide sufficient flow of cooling water to the oil cooler in accordance with regulations to prevent hydraulic components and pipelines from being blocked or leaked due to oil pollution or high temperature Damage such as oil.The extruder should be filled with lubricant that meets the requirements.
    5. Plastic machinery must be operated in strict accordance with the requirements of operating regulations, and illegal operations must not be performed at non-operating stations. To ensure the reliability of the safety device, the safety protection measures of the machine must not be destroyed for the sake of efficiency.
    6. When the plastic machine is operating, the material temperature does not reach the set temperature, and the screw is not allowed to start when the holding time is not enough.
    7. Operated by operators who are familiar with the mechanical properties and operating procedures of plastic machinery.

    Failure analysis of pelletizing machine

    During the daily operation of the pelletizing machine, various failures occur in the pelletizing machine, which affects the normal production of plastic machinery. Below is an analysis of some common failures of the pelletizing machine.



    Fault conditions Cause Analysis Solution
    Host current is unstable 1. uneven feeding

    2. The main motor bearing is damaged or poorly lubricated

    3. A certain section of heater fails

    4. Screw adjustment pad is wrong

    1. Check the feeder
    2.Maintenance of main motor
    3. Check whether each heater is normal
    4. Check the adjustment pad
    The main motor cannot start 1. The startup sequence is wrong, whether the fuse is burnt out
    2. Problem with main motor thread
    3. The interlocking device related to the main motor works
    1. Check the boot sequence
    2. Check the main motor circuit
    3. Check if the lubricant pump starts
    4. The inverter induction power is not discharged
    5. Check if the emergency button is reset
    The head discharge is not smooth or blocked 1. A section of heater does not work

    2. Operating temperature is set too low

    3. There may be foreign objects that are not easily melted

    1.Check heater

    2.Verify the set temperature of each section

    3. Clean and inspect the extrusion system and the head

    Main electric start current is too high 1. Insufficient heating time

    2. A certain section of heater does not work

    1. Extend the heating time

    2. Check whether each section of heater is working normally

    The main motor makes an abnormal sound 1. The main motor bearing is damaged 1. Replace the main motor bearing
