Table Panel Blow Molding Machine

Short Description:

product description our certificates FAQ request a quote Menu product description our certificates FAQ request a quote Table Panel Blow Molding Machine – 4‘ table specs   F  ty Item# Description Product Size  L X W X H= CM Resin Top Steel Understructure N.W/Pcs Blow Molding Table Board TOP:mm Rails: mm Cross Brace: mm Leg Frames: mm Locking Rings: mm Folding Lock Handle Legs foot Plastic hoops of Cross Brace Sides Main Body Wall Thickness Thickness of ...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Menu

    Table Panel Blow Molding Machine – 4‘ table specs



    ty

    Item# Description Product Size  L X W X H= CM Resin Top Steel Understructure N.W/Pcs Blow Molding Table Board TOP:mm Rails: mm Cross Brace: mm Leg Frames: mm Locking Rings: mm Folding Lock Handle Legs foot Plastic hoops of Cross Brace
    Sides Main Body Wall Thickness Thickness of Connector Dimensions Dimensions Thickness Legs Tubes Insert Legs Tubes Top Braces Hinge Links Cross Braces of Leg Frames Thickness of Hinges
    Sample 802 4′ Bi-Fold Table Assembled:122LX61WX45.5/60.5/73.5H 1.9kgx2 4.5kg 8.4kg 33.5 16.5 2.2 2 12×25×1.0 12x15x1.0 Ø25×1.0 Ø19×1.0 Ø16×1.0 N/A Ø16×1.0 220Lx22Wx2.5THK N/A Plastic handle with Iron pin PPVC/Nylon webbing PE N/A
    Folded:62.5Lx61Wx7H
    Snail 802-Now 4′ Bi-Fold Table Assembled:122.8LX61WX46/61.2/74H (It is suggested to change to 48.5 from 46) 1.94kgx2 4.38kg 8.26kg 34.0 17.3 1.9 2 12×25×0.85 10x15x0.85 Ø25×0.85 Ø19×0.85 Ø16×0.85 N/A Ø16×0.85 220Lx26Wx2.0THK N/A Plastic handle with Iron pin PVC/Nylon webbing PP N/A
    Folded:62.5Lx61Wx7.3H

    Remark: 1) The wall thickness of the hollow structure of blow-molded parts will fluctuate by about 0.3mm due to the stretching size of different positions. The standard or tolerance is determined according to the specific situation.

    There are the pictures of the current sample below.

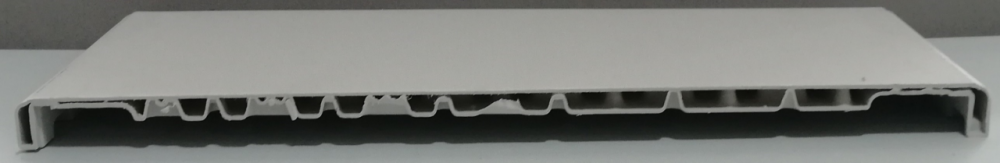

    fih table display

    fih table display

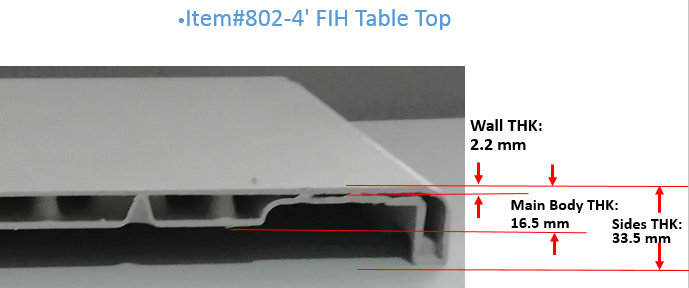

    fih table top

    fih table top

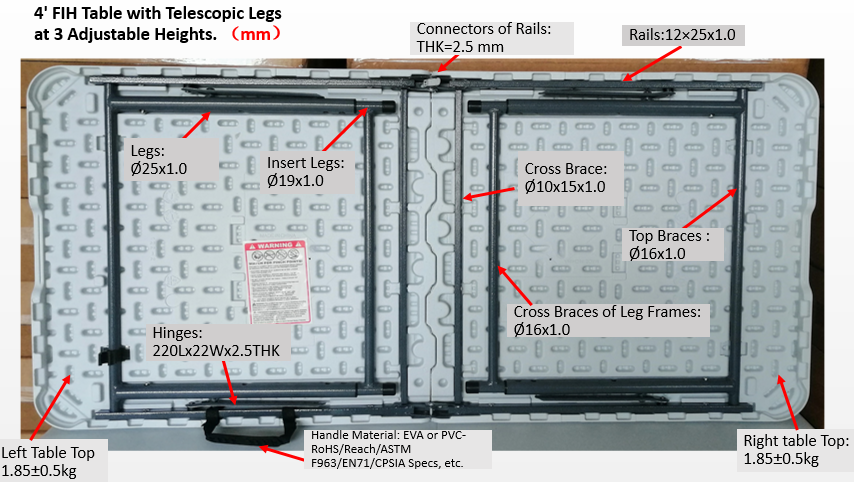

    fih table

    fih table

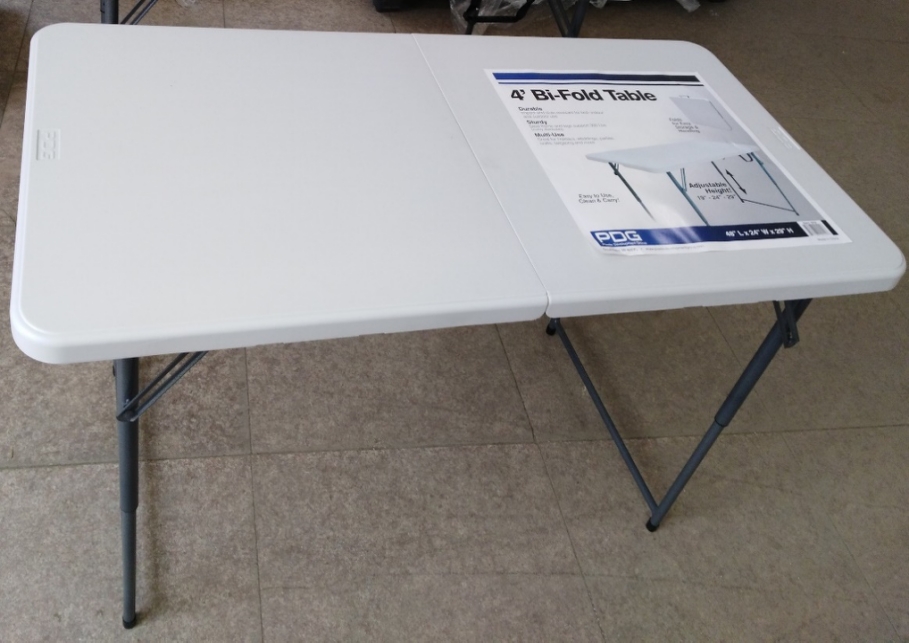

    table

    table

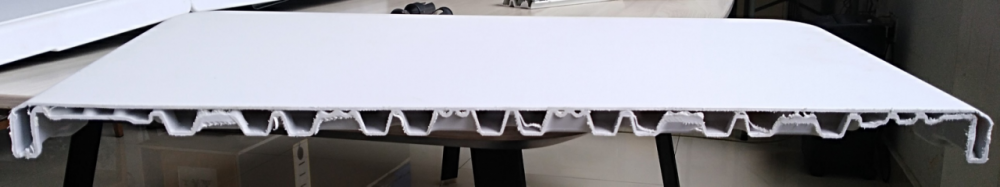

    This is the picture of the Snail sample below.

    Snail sample



    Table Panel Blow Molding Machine – 6‘ table specs



    Item# Description Product Size  L X W X H= CM Blow molding Table Panel Iron N.W/Pcs Table panel:mm Square  Beams: mm Cross Brace: mm Leg Frames :mm Locking Ring: mm Folding Lock :mm Handle Leg foot
    Sides Main Part Surface Thickness of Connector Dimensions Thickness Dimensions Leg Tubes Top Tubes Leg Hinge Tubes Supports Leg Hinge Bars: mm
    804 SPECS 6′ Straight Banquet Table Assembled:182LX73.5WX74H 7.3kg 5.6kg 12.9kg 39 20 2.5 NIL 12×30×1.0 Ø16×1.0 Ø25×1.0 Ø19×1.0 Ø16×1.0 10THK×25Wx1.0 20×2.5 32.5×17.2×1.5 N/A PVC/Nylon webbing PE
    Folded:182LX73.5WX3.9H
    803 6′ Straight Banquet Table Assembled:182LX73.5WX74H 7.1kg 5.6kg 12.7kg 39 20 2.5 NIL 12×30×1.0 Ø16×1.0 Ø25×1.0 Ø19×1.0 Ø16×1.0 10THK×25Wx1.0 20×2.5 32.5×17.2×1.5 N/A PVC/Nylon webbing PE
    Folded:182LX73.5WX3.9H

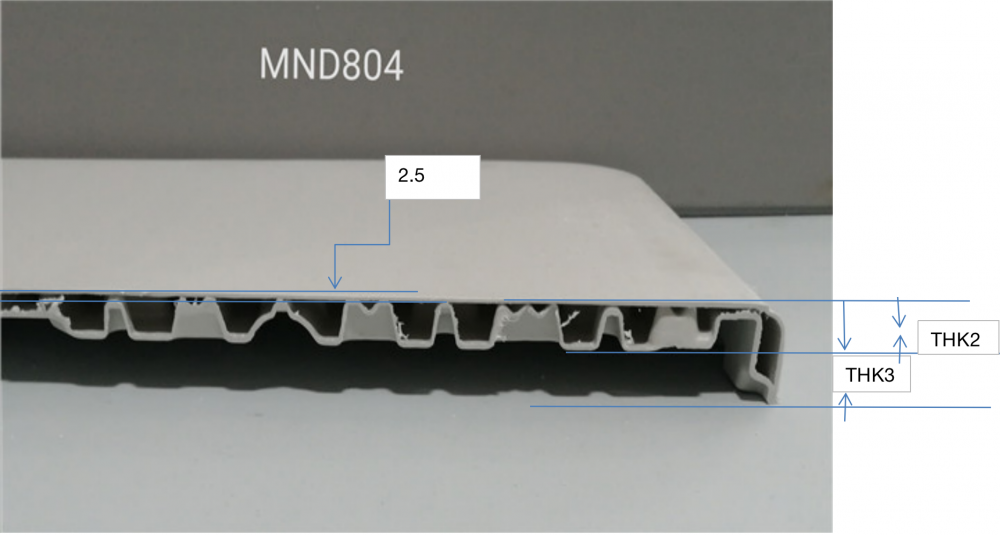

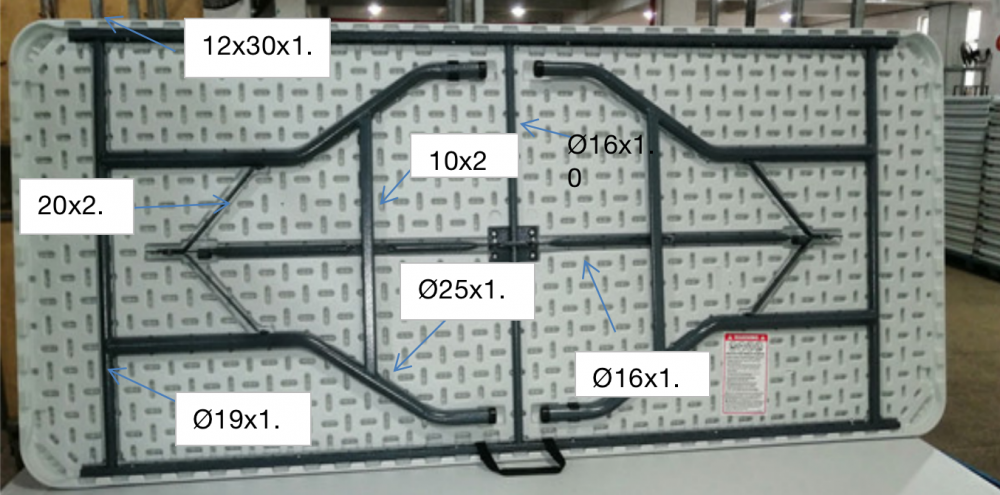

    table back

    table back

    MND



    Table Panel Blow Molding Machine – 8‘ table specs



    Item# Description Product Size  L X W X H= CM Blow molding Table Panel Iron N.W/Pcs Table panel:mm Square  Beams: mm Cross Brace : mm Leg Frames: mm Locking Ring : mm Folding Lock :mm Handle Leg foot
    Sides Main Part Surface Thickness of Connector Dimensions Thickness Dimensions Leg Tubes Top Tubes Leg Hinge Tubes Supports Leg Hinge Bars: mm
    816 SPECS 8′ FIH Table Assembled:242.5x74x74.5 5.9kgx2 8.9kg 20.8kg 44 25 2.8 3.0 12×35X1.5 1.2 Ø16 shrink tube to Ø13 and use black plastic plug Ø25×1.0 Ø19×1.0 Ø16×1.0 10×25 flat tube 20×2.5 32.5×17.2×1.5 Plastic handle with Iron pin PVC/Nylon webbing PE
    Folded:122x74x4.5
    816 8′ FIH Table Assembled:242.5x74x74.5 5.4kgx2 8.7kg 20.4kg 43.4 23.8 2.8 3.0 12×35X1.5 1.2 Ø16 shrink tube to Ø13 and use black plastic plug Ø25×1.0 Ø19×1.0 Ø16×1.0 10×25 flat tube 20×2.5 32.5×17.2×1.5 Plastic handle with Iron pin PVC/Nylon webbing PE
    Folded:122x74x4.5

    cbaee b effe

    dbab fbd fb ae

    cdef aad dcbfaa

    FAQ

    • International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW
    • Terms of Payment: LC, T/T
    • Average Lead Time: Peak season lead time: 3-6 months, Off season lead time: 1-3 months
    • Number of Foreign Trading Staff:>50 People

    Yes, We own 5 manufacturing bases and sales center in Shanghai , Suzhou ,Changzhou, Zhou Shan, Dongguan China.
    Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo.After more than 40 years development,
    JWELL is one of the biggest extrusion machine supplier in China with 300design&test engineer, 3000 employees.
    Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.

    Our machines taking the European standards and follow the Germany type of business, we cooperation with
    International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously
    imports over 1000 international first-class high precision processing equipment such as multistage machining centers, CNC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification,
    IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the
    machine performances before each delivery. Jwell service engineers will always be here for anything you needed.

    Usually it takes about 1 – 4 months depends on different machinery upon receipt of order advance payment.

    Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and
    Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.

    One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical
    innovation or improvements for your future purchasing plan.

    We produce more than 2000 advanced extrusion lines every year world wide.

    We can send the small spare parts by air express for urgent matter. And the complete production line by sea
    to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest
    port is China Shanghai, Ningbo port, which is convenient for maritime transportation..

    Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing
    engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing,
    operation and maintenance service for a life time.
