Three-layer PVC Solid Wall Pipe Co-extrusion Production line

Short Description:

product description our certificates FAQ request a quote Menu product description our certificates FAQ request a quote Three-layer PVC Solid Wall Pipe Co-extrusion Production line Performance & Advantages:   Use two or more SJZ series conical twin-screw extruders to implement co-extruded three-layer PVC pipes. The sandwich layer of the pipe is high-calcium PVC or PVC foam raw material. The extruder uses a super wear-resistant alloy screw barrel; the twin-screw feeds e...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Menu

    Three-layer PVC Solid Wall Pipe Co-extrusion Production line Performance & Advantages:



    Use two or more SJZ series conical twin-screw extruders to implement co-extruded three-layer PVC pipes. The sandwich layer of the pipe is high-calcium PVC or PVC foam raw material.

    1. The extruder uses a super wear-resistant alloy screw barrel; the twin-screw feeds evenly and the powder doesn’t bridge;
    2. Optimized design of PVC three-layer mold, the internal flow channel is chrome-plated and highly polished, wear and corrosion resistant; with special sizing sleeve, the pipe product has high speed and good surface;
    3. Cutting machine adopts rotating clamping device to adapt to different pipe diameters, eliminating the trouble of frequent replacement of fixtures. Equipped with a new type of adjustable floating chamfering mechanism, the size of the chamfer can be adjusted according to the pipe diameter and wall thickness, cutting and chamfering can be performed in one step. A closed suction device, better chip suction effect.

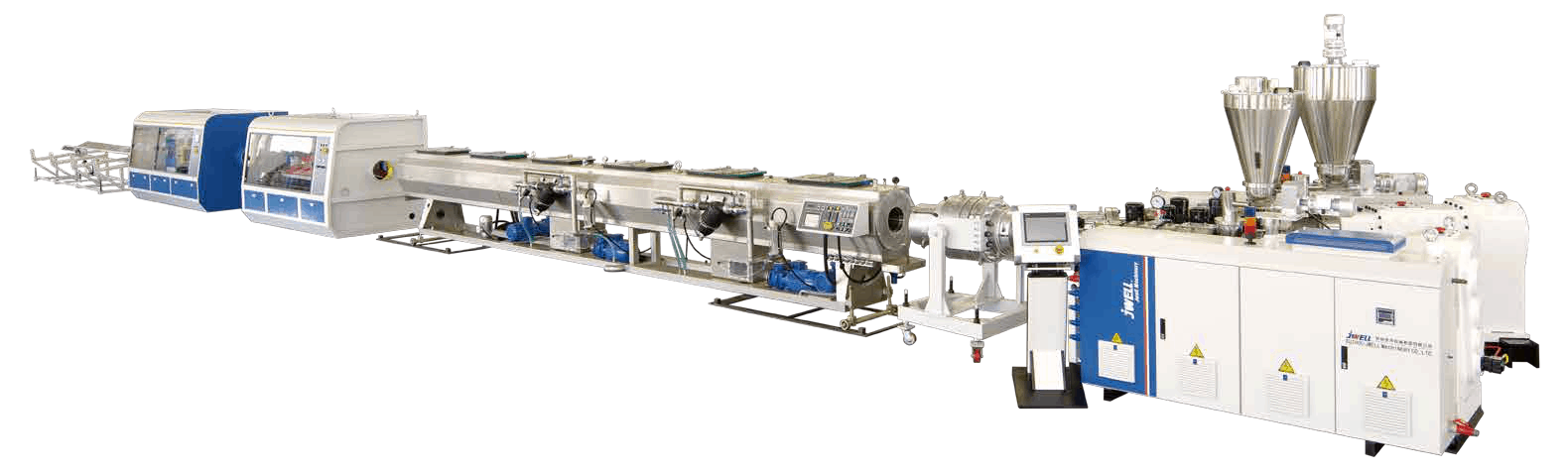

    Three layer PVC Solid Wall Pipe Co extrusion Production line
    Three-layer PVC Solid Wall Pipe Co-extrusion Production line



    Three-layer PVC Solid Wall Pipe Co-extrusion Production line Main Technical Parameter



    Type Pipe spec(mm) Extruder Main Power(kw) Output(kg/h)
    JWG-PVC250 Three-layer Φ75~Φ250 SJZ65/132+55/110 37+22 300~400
    JWG-PVC450 Three-layer Φ200~Φ450 SJZ80/156+65/132 55+37 400~600
    JWG-PVC630 Three-layer Φ315~Φ630 SJZ92/188+65/132 110+37 740~900

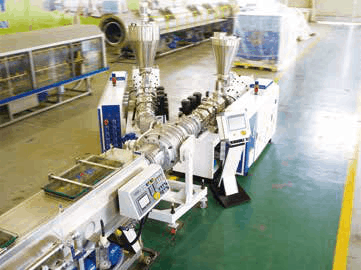

    detail



    Three-layer PVC Solid Wall Pipe Co-extrusion Production Line Advantages



    • The extruder used JWELL Ultra-wear-resistant alloy screw and barrel;
    • A used twin-screw feeder with feeding stability and anti-powder bridge;
    • The vertical assembly gearbox optimizes the cooling scheme of the gearbox, and the overall temperature of the gearbox is even more uniform and the temperature rise is small;
    • Good appearance, easy maintenance;
    • The PVC three-layer mold optimized by Suzhou Kingwell, with the appearance of insulation and anti-perm protection;
    • The internal flow path is highly polished by chrome plating, wear-resistant, and corrosion-resistant;
    • It is convenient to remove and replace product specifications.
    • With the special sleeve, the production speed is fast, and the surface quality is good.
    • Two-stage vacuum tank, independent frequency control, vacuum degree abnormal alarm;
    • Multi-claws haul-off unit, servo drive motor, ensure the high traction force stable production, no indentation, and no skidding.
    • The cutting machine adopts a rotary clamping device to adapt to different pipe diameters and avoid the trouble of frequent replacement of clamps;
    • Equipped with a new adjustable float chamfering mechanism, it can adjust the chamfering size according to the size of pipe diameter and wall thickness;
    • With a closed suction device, the effect is better;
    • Movable man-machine interactive console, complete line PLC centralized control, equipped with energy consumption display meter.

    The products are used in the core layer foaming drain pipe with high barrier noise, the foaming core layer pipe with the spiral lines of inner wall with noise-reducing, and the good conductivity of the coal mine are used for three layers of PVC gas pipe.

    FAQ

    • International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW
    • Terms of Payment: LC, T/T
    • Average Lead Time: Peak season lead time: 3-6 months, Off season lead time: 1-3 months
    • Number of Foreign Trading Staff:>50 People

    Yes, We own 5 manufacturing bases and sales center in Shanghai , Suzhou ,Changzhou, Zhou Shan, Dongguan China.
    Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo.After more than 40 years development,
    JWELL is one of the biggest extrusion machine supplier in China with 300design&test engineer, 3000 employees.
    Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.

    Our machines taking the European standards and follow the Germany type of business, we cooperation with
    International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously
    imports over 1000 international first-class high precision processing equipment such as multistage machining centers, CNC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification,
    IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the
    machine performances before each delivery. Jwell service engineers will always be here for anything you needed.

    Usually it takes about 1 – 4 months depends on different machinery upon receipt of order advance payment.

    Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and
    Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.

    One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical
    innovation or improvements for your future purchasing plan.

    We produce more than 2000 advanced extrusion lines every year world wide.

    We can send the small spare parts by air express for urgent matter. And the complete production line by sea
    to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest
    port is China Shanghai, Ningbo port, which is convenient for maritime transportation..

    Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing
    engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing,
    operation and maintenance service for a life time.
